Spirax Sarco · Steam Equipment & Control Valves
Steam Equipment & Control Valves
Spirax Sarco products for the steam and condensate loop, and a wide range of control valves for steam and other industrial fluids.
Steam equipment
Equipment for the steam and condensate loop
Condensate handling
- Steam traps
- Condensate pumps
- Automatic pumping traps
Pressure & temperature control
- Pressure control valves
- Temperature control valves
- Pressure and temperature sensors and controllers
- Boiler controls
Valves
- Safety relief valves
- Stop valves (ball, globe, piston and gate)
- Check valves
System equipment
- Strainers
- Separators
- De-superheaters
- Steam injection in water
- Direct steam humidification (for HVAC)

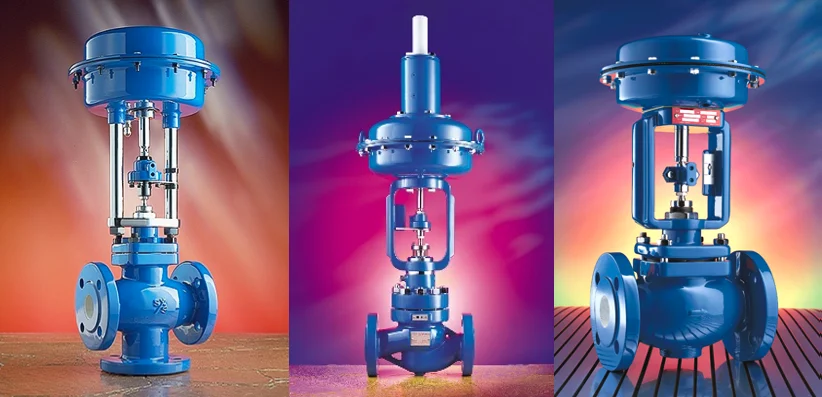

Control valves
Control valves for steam and other industrial fluids
- 2 port valves
- 3 port valves
- Actuated ball and butterfly stop valves
- Electric and pneumatic actuators
- Pneumatic and electro-pneumatic valve positioners
- Safety relief valves
- Self-acting temperature and pressure control
| Sizes | ½″ – 8″ (DN15–200) |
|---|---|
| Class / rating | ANSI 150 – ANSI 600, PN16 – PN100 |
| Body materials | Cast iron: A126B and DIN 1693 GG25 |
| Body material | SG iron: DIN 1693 GGG40.3 |
| Body material | Cast steel: A216 WCB and DIN 1.0619N |
| Body material | Alloy steel: A217 WC6 |
| Body material | Stainless steel: A351 CF8M and DIN 1.4408 |
| Internals | Stainless steel (various grades) |
Full product details at spiraxsarco.com.
Technical contact
